About this vehicle
Description

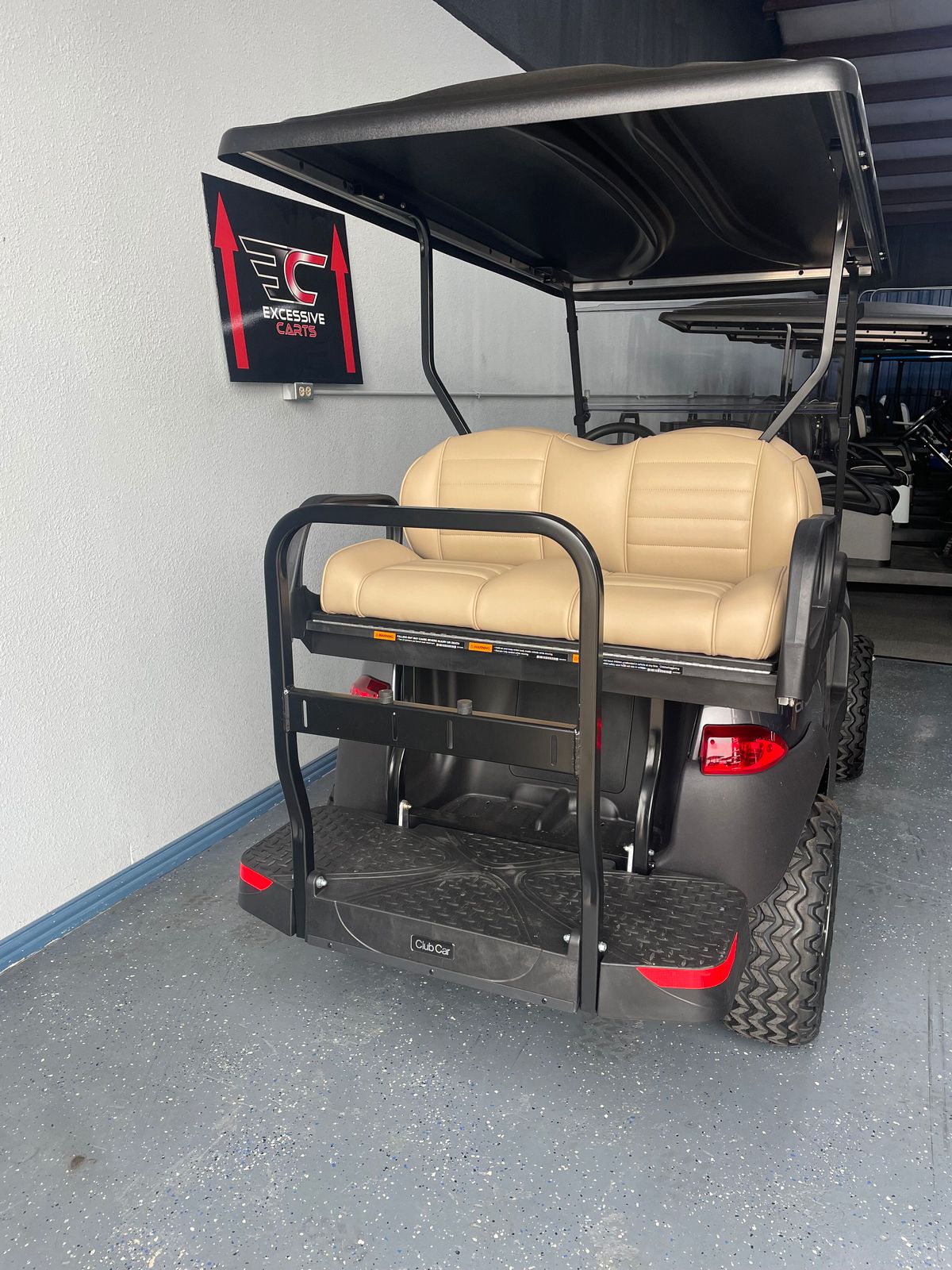

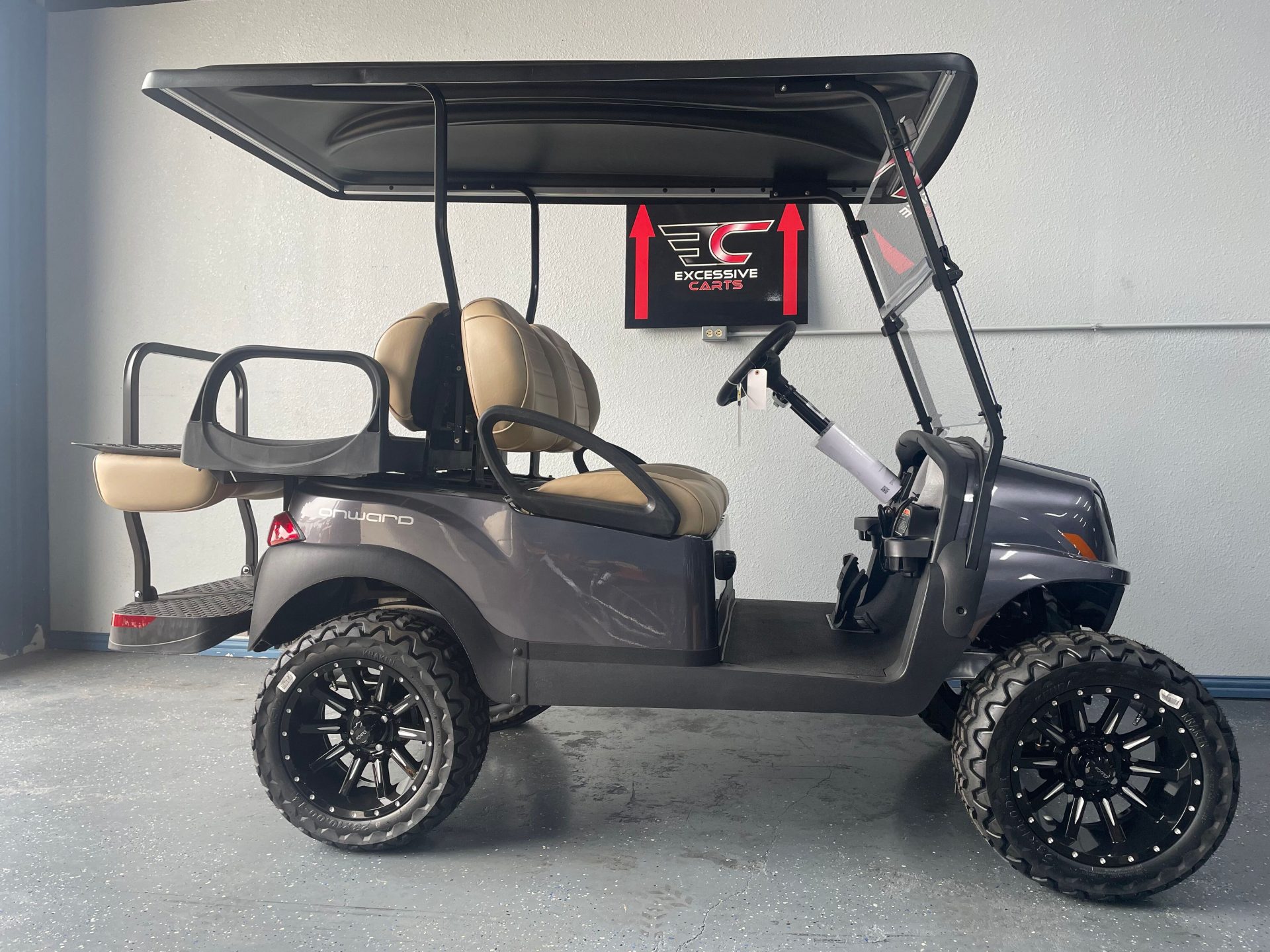

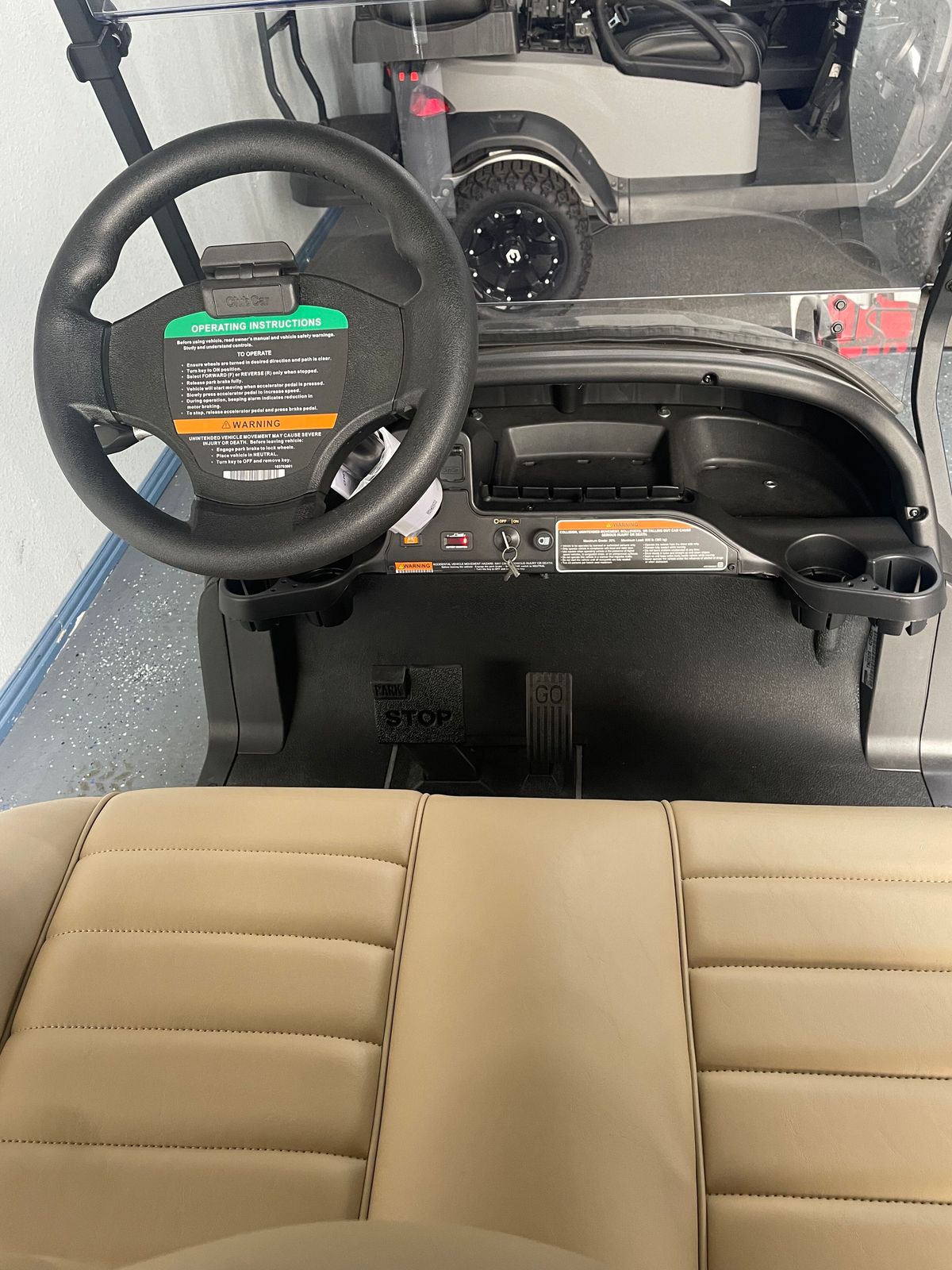

NEW Club Car Onward – 4 Passenger – Lifted – FLA
2 Year Club Car Limited Warranty for Onward Vehicles / 1 Year for Non-Standard Accessories
ENGINE 48-volt Excel™ with 250 Amp, Solid State Controller – w/ Battery Filling System
HORSEPOWER 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW);
BATTERIES (6) 8-volt
CHARGER E.R.I.C. Automatic, 48-volt; UL and CSA listed
STEERING SportDrive™ — Self-compensating double reduction helical rack & pinion
FRONT SUSPENSION Independent leaf spring w/dual hydraulic shocks
BRAKES Self-adjusting, rear wheel mechanical drum
PARK BRAKE Foot actuated, 3-position
BODY AND FINISH Front: Painted TPO; Rear: Painted Surlyn
TIRES 14″ Mercury Wheel – 23×10-14
LXWXH 114 x 49 1/2 x 80 1/2
WHEELBASE 67 1/2 inches/Metric
GROUND CLEARANCE 6 3/8 inches/Metric
FUEL TANK CAPACITY N/A
TREAD–FRONT & REAR Front/Rear: 40 3/4/39 1/2/Metric
TOTAL VEHICLE WEIGHT 1125 lb/Metric
FRAME TYPE AlumiCore™ — Ladder-style aluminum box beam
SPEED RANGE 19 mph (30 kph)
ELECTRICAL FEATURES Front LED headlights with LED accent running lights, rear LED tail & brake lights, front & rear turn signals, state of charge or fuel meter & horn
